Alpha Quadro Label Applicator

The new Alpha Quadro label dispenser offers you totally new possibilities in the field of labelling of products and packaging. This system’s special feature: several different label rolls can be processed simultaneously. The Alpha Quadro guarantees high labelling performance and application accuracy, combined with high processing speeds at production and conveyor lines. An innovation addressing […]

With the Alpha TIJ variable information is printed without physical contact onto possibly pre-printed labels immediately before dispensing. No labels are wasted/lost when print data changes and previous data are automatically excluded when the product changes. Using the cartridge ink technology, labels with up to 50 mm high symbols and a resolution of up to […]

APPLICATIONS Production Food bottling Sales warehouse Transport Postal services

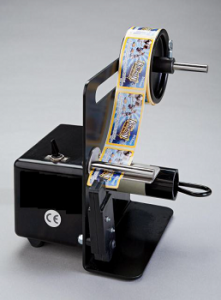

All Dispensa-Matic Label Dispensers can be supplied with an Optical Sensor or a Micro-Switch, please specify when ordering. Dispensa-Matic U25 – Up To 63mm (2.5”) Wide Dispensa-Matic U45 – Up to 114mm (4.5”) Wide Dispensa-Matic U60 – Up to 152mm (6”) Wide

Container Diameter 12.70mm to 165mm Label Width 25mm to 165mm Label Depth 12mm to 304mm Label Roll Diameter 305mm Label Roll Core 76mm Dimensions 572mm x 292mm x 343mm Weight 8kg

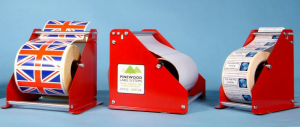

Roll widths up to 250mm Easy to lead, easy to use Free standing or wall mounted Rigid metal construction Standard roll holder 25mm (Other sizes available as an option) Maximum roll diameter 190mm Model Label Width (mm) MB 80: Up to 80 MB 150: Up to 150 MB 250: Up to 250

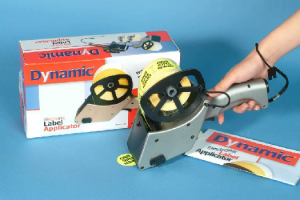

Supplied With 110V and 220V Adaptor Several plug types available. The adaptor feeds the applicator and charges the battery. Recharge time: 12 hours Optional Extras Rechargeable Battery Over 1000 metres of labels with one recharge. Up to 400 recharges per battery Battery Charger For two batteries – complete recharge in 2 hours. Works with 110V […]

SPECIFICATIONS Speed – 2.5 to 61.5cm/sec Roll Width – 2.5cm to 23cm Core Size – 7.6cm Roll Diameter – 35cm Physical Length – 42cm Width – 33cm Height – 28cm Weight – 7kg Electrical – 100 – 250 Volt 47 – 63Hz Environment Temperature – 5 to 40º

SPECIFICATIONS Speed – 2.5 to 25.5 cm/sec Roll Width – 2.5cm to 10.2 cm Core Size – 7.6cm Roll Diameter – 20.3 cm Physical Length – 25.5cm Width – 25.5cm Height – 21.5cm Weight – 3.6kg Electrical – 100 – 250 Volt 47 – 63Hz Environment Temperature – 5 to 40º

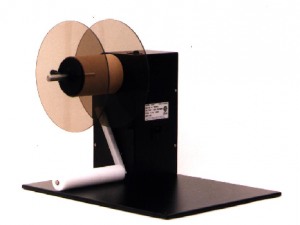

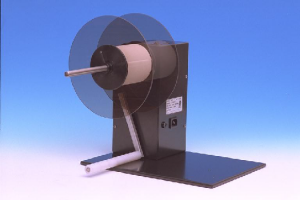

Features: Wind Labels Roll To Roll Maximun Speed 61.5mm/sec Roll Width 2.5 cm to 23cm Auto Switching Power Supply 100-250 Volts 47-63 Hz Supports 30.5cm Rolls With 7.6cm Cores Winds Labels “In” to “Out” or “Out” to “In” Adjustable Speed Control Back Tension For Tight Uniform Rolls Splice Smaller Rolls Into One Large Roll The […]
