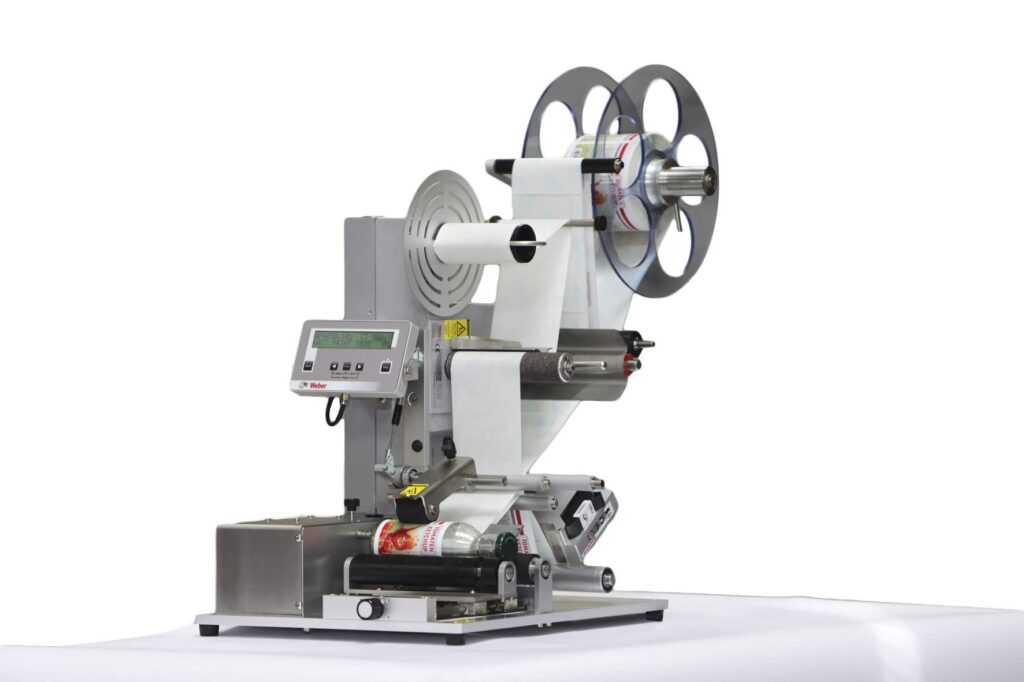

Geset 141 Semi Automatic Label Dispenser

The Geset 141 semi-automatic all-round labelling system is used for labelling small tins, bottles, jars etc. This solution was developed especially for companies requiring flexible labelling of small batches. Classical applications include the pharmaceutical and cosmetics industry and the food and beverage sector.









      • All-round labelling of unstable when standing, lying and cylindrical products
  •
      • Desktop design
  •
      • Short batch change setting-up times
  •
      • Segmented pressure rollers enable processing of products with protruding edges
  •
      • Simple, clear operation via multi-language user display
  •
      • Simple optional integration of printing systems
  •
      • Multiple dispensing per product with variable spacing between two labels possible



Adobe Reader is required to open and view PDF files. This can be downloaded free from adobe.com.

Available Documents

Geset 141 Technical Information
Geset 141 Instructions Manual
Geset 141 Spare Parts Manual

    Zebra ZD410

    The ZD410 is the smallest printer in its class, fitting easily in the most space-constrained desktop or shelf. Available with either 203 dpi or 300 dpi print resolution, the ZD410 is ideal for printing labels with a shelf life of less than one year. The ZD410 is currently available for purchase only in North America and the European Union countries. It will be launched in other countries throughout 2016.

    View Product

    Booklet Labels

    extended-text-labels

    Many products, especially medicines and nutraceuticals, need to provide additional information to their customers regarding dosage and safety concerns. While space on a container is limited, you can get around that limitation by using a booklet label.

    View Product

    Geset 125 Horizontal Labelling System

    The Geset 125 labelling system is used to label cylindrical products automatically. Depending on the type and dimension of the product, different label sizes are used. The products are fed manually or by a conveying system provided by the customer at an infeed passage of the labelling system. Care should be taken on accurate alignment of the products between the two freely mounted rollers of the roll conveyor. The side guide’s position the products flush with the outside edge of the roll conveyor.

    The roll conveyor feeds the products to the labeller. There the label is applied with the part running forward onto the product and it is pushed by rotation and the back pressure of the wrapping unit onto the product. The back pressure of the wrapping unit (the speed of the wrapping unit is twice as fast as the speed of the base conveyor) enables the product in rotation. The roll conveyor forwards the finished labelled products to the outfeed. Here the products are removed manually or by the customer’s conveying system.

    View Product

    Datalogic Falcon X3

    Datalogic Falcon X3

    Falcon X3 is perfect for  a variety of Warehousing and larger retail in store environments including stock counts, merchandising, pick and pack, and goods in/goods out applications.

    View Product
