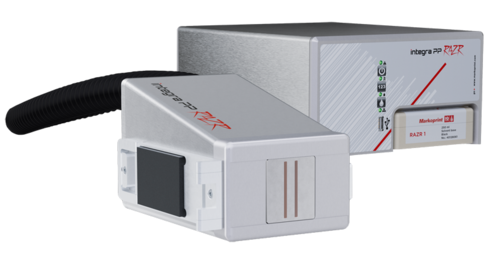

Markoprint Integra PP RAZR

Experience Effortless High-Resolution Printing: Introducing the Integra PP RAZR with Cutting-Edge Technology. Print Up to 34mm High on Virtually Any Product Surface with Ease. Be Amazed by the Permanent Print Head’s Impressive Resolution, Lightning-Fast Speed, and Integrated Redundancy. Plus, its Compact Design Ensures Seamless Placement in Any Production Facility.

Contact Us Download Brochure

Unleash Unmatched Speed and Razor-Sharp Resolution for an Impressive Printing Experience



      • High resolution up to 600 dpi vertical
    •
      • Speeds of 90 m/min at 300dpi
    •
      • Small fonts from 1.5 mm, high resolution graphics / logos
    •
      • Printing of grayscale
    •
      • Easy start-up and bleeding of the ink system
    •
      • Solvent ink optimal for printing on absorbent and non-absorbent surfaces
    •
      • Replaceable ink cartridge with large ink supply (max. 250 ml)
    •
      • Print height of 34 mm without offset
    •
      • Different waveforms to control the blackness of the print

Adobe Reader is required to open and view PDF files. This can be downloaded free from adobe.com.

Available Documents

InkJet Brochure

    Markoprint Integra Quadro/Quadro²

    The new Markoprint Integra Quadro/Quadro² print controller can control up to four inkjet printers or four print positions at the same time. This allows you to print on both sides of primary and secondary packaging on one or two separate production lines. There are also two separate printing methods that can be used in this process.

    The Markoprint Integra Quadro/Quadro² can easily cope with limited space thanks to its slender design. Installation inside or directly at the industrial line is straightforward thanks to the different fixation options. It was designed specifically for installation in control panels and machinery.

    View Product

    X4Jet Plus

    With the new high performance Markoprint X4JET print controller, different inkjet printing technologies can be controlled either simultaneously or alternately. The intuitive input unit of the new high performance Markoprint X4JET plus print controller is a boost to operator convenience. All system parameters can be entered easily and quickly, to be stored and called up later.

    View Product

    X2Jet Touch

    The particularly compact and cost-effective X2JET Plus System is ideal for the foodstuffs, chemicals, building materials, and pharmaceutical industries. This innovative system marks absorbent and semi-absorbent surfaces – fast, accurately and reliably. The touchscreen interface and animated graphics makes it user-friendly and easy-to-use. Using a USB stick, data transfer is simple and reliable.

    View Product

    Markoprint Integra PP 108

    The Markoprint Integra PP108 is the first inkjet printer with SEIKO printing technology and a circulating ink system. It features a POZIFLOW circulating ink system which prevents the accumulation of air in the nozzles and ensures a permanent, clean print image without missing print due to blocked nozzles. The system’s ink tank can be installed above, below, or at the same height as the print head without any problems. The new SEIKO printhead has a print height of 108 mm and achieves a remarkable speed of up to 150 meters per minute with a high resolution of 360 dpi.

    Suited to Dual Colour Printing Applications such as Hazard Labelling, Dual Colour overprinting and Direct Printing Applications to corrugate, and web printing applications, the PP108 is the latest high end, economical Inkjet System using the latest Drop on Demand Printing Technology.

    View Product
