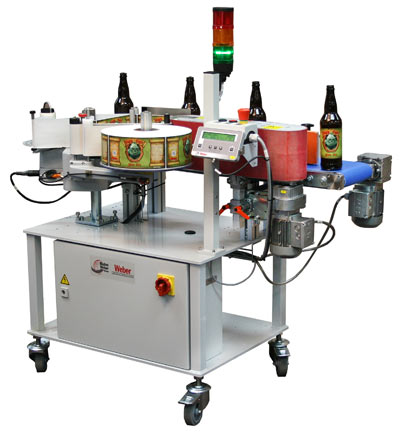

Weber 121 Wrap-Around Label Applicator
Weber’s versatile 121 provides a simple, cost-effective solution to low-volume wrap-around labelling that is as accurate and flexible as similar labelling systems used in larger-scale operations. This labelling system features the fast and accurate positioning of full, overlap and partial-wraps of pressure-sensitive labels on cylindrical containers.
Products up to 7″ in diameter and up to 12″ high easily can be accommodated using the system’s adjustable guide rails. It can handle labels up to 6 inches tall and 12 inches long and apply them at rates up to 45 products per minute to a variety of sized products. During application, labels are peeled away from the liner and securely attached to products using the wipe-on label applicator and a wrap station.
The brand-new Weber 121 system features a cost-efficient Alpha Compact labelling system mated with a wrap conveyor for a compact, easy-to-use solution for labelling bottles and other round straight-walled products. This heavy-duty wrap-labeller can be inserted into your production line to give you consistent end-to-end labelling and better control over your production.
Applies label up to 6″ high x 12″ long
Stand-alone or add to a production line
Placement accuracy of 0.03″
If you are looking for a reliable, economical bottle-wrap labelling system that is easy to set up and simple to maintain then check out the Weber 121. Industries that use the Model 121:
Craft beer labelling
Medical and pharmaceutical container labelling
Food/Sauce bottle labelling
Cylindrical beverage & juice bottle labelling

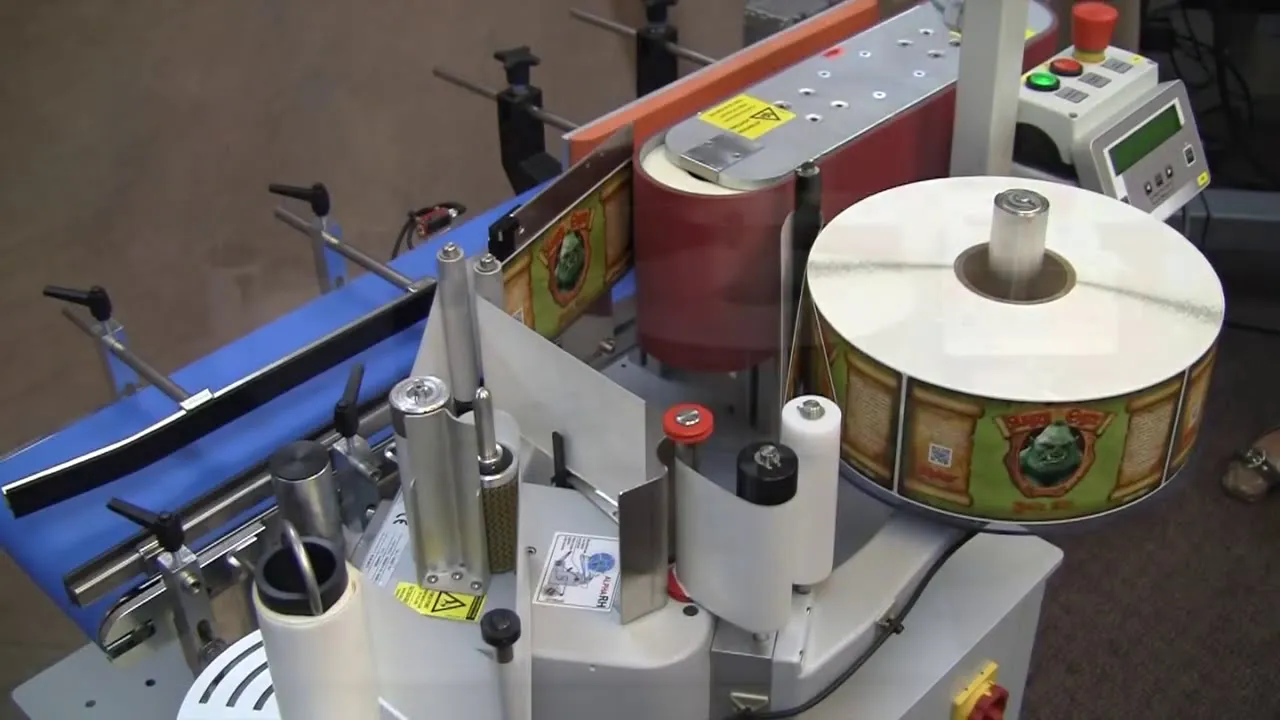

Products are delivered to the Weber 121’s built-in Alpha Compact applicator head via a 7.75″-wide, 45″-long belt conveyor, which permits product transfers at both the entry and discharge ends. The unit is capable of a superb placement accuracy of 0.03″. The Weber 121 can be integrated into existing production processes or operate as a manually fed, stand-alone solution. The unit also boasts robust steel construction that makes it ideal for lower-volume, intermittent labelling projects or for multiple-shift operations.
Adobe Reader is required to open and view PDF files. This can be downloaded free from adobe.com.
Available Documents
Geset 121 Instructions ManualGeset 121 Computer Assisted Design
